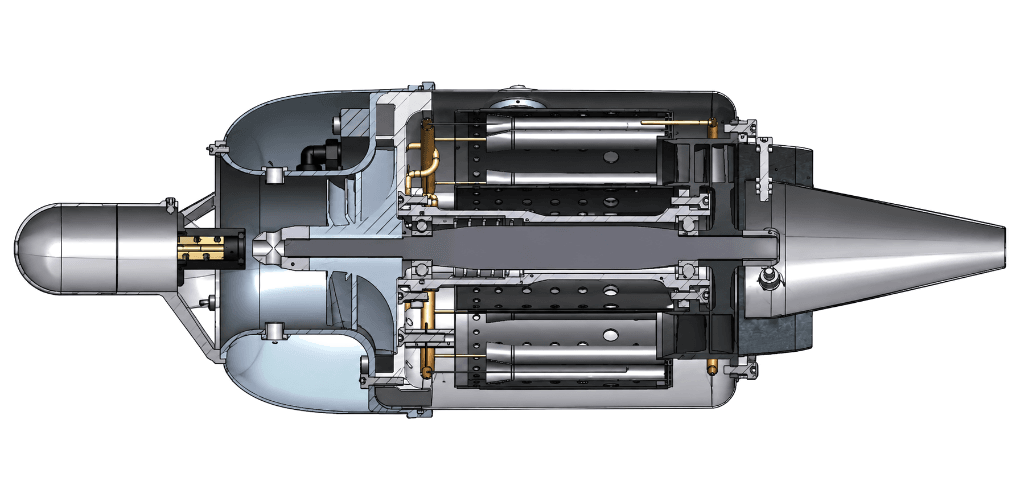

BUILD YOUR OWN 140-180N RC JET TURBINE WITH MASTER CAD BLUEPRINTS
Complete mechanical aerospace blueprint bundle: 34 fully dimensioned DIN standard technical drawings, native 3D SolidWorks parametric models, full assembly, and manufacturing tolerance tolerances.
See the Engine in Action
Precision acceleration, thermal stability, and the unmistakable sound of a micro gas turbine operating at 123,000 RPM with 14 to 18 kgf thrust.
Engineered to Proven DIN Tolerances
Advanced-level gas turbine plans with full technical documentation in English and German for machinists, hobbyists, and engineers worldwide.
Massive thrust with excellent power-to-weight ratio, engineered for high-performance RC aviation and propulsion research.
Engineered for sustained 123,000 RPM operation with internal capillary bearing lubrication fed directly by the fuel circuit.
Designed for standard aviation kerosene with 5% synthetic turbine oil. Also runs cleanly on standard automotive diesel.
34 technical part drawings according to strict German DIN specifications, plus 9 auxiliary tooling blueprints.
Real-World Engineering Applications
Propulsion for large-scale RC jet aircraft, target drones, and experimental UAVs requiring high thrust-to-weight ratios.
Micro-gas turbine research, distributed power generation, and thermodynamic cogeneration academic test stands.
Combustion dynamic analysis, gas flow studies, and training equipment for engineering students and turbomachinery technicians.
Everything Included in the Project
Complete blueprint and 3D CAD package with all necessary files for workshop planning, tooling fabrication, and turbine machining.
34 Technical DIN Blueprints (PDF)
34 detailed technical drawings of all engine components drafted strictly to the German DIN engineering standard.
Vector DXF and DWG Formats
All component drawings in DXF and DWG vector formats for seamless import into CAM packages and CNC machine tools.
3D Assemblies & Parts for SolidWorks
Native SolidWorks CAD models with complete parametric feature trees, collision checks, and exploded view sequences.
Master 3D Assembly in IGES Format
Neutral 3D CAD exchange format compatible with Autodesk Fusion 360, FreeCAD, Siemens NX, Inventor, and Rhino.
9 Auxiliary Tooling Blueprints (PDF)
9 dedicated technical drawings for machining the required workshop jigs, fixtures, and mandrel tools in your shop.
Bill of Materials & Sourcing List (BOM)
Comprehensive list of recommended raw alloys, commercial 688 hybrid bearings, and verified parts suppliers.
Component Preparation & Machining Guide
Step-by-step practical notes, critical clearances, dynamic balancing advice, and assembly procedures.
English & German Documentation
Original technical documents and drawing notes written in aerospace benchmark languages: English & German (EN/DE).
Direct Gumroad Download
Immediate, permanent lifetime access to the 130 MB master ZIP archive directly on Gumroad with all organized files.
Complete Blueprints for Engine Test Bench Clamp
When you purchase the turbine plans today, you get complete manufacturing drawings for a heavy-duty test bench mounting clamp completely free, ensuring safe dyno and bench test runs.
What Engineers & Makers Are Saying
Real workshop feedback from machinists, scale jet pilots, and university propulsion labs who built and bench-tested the engine.
“Machined on a bench lathe • 16.4 kgf on first stable run”
The accuracy of the German DIN dimensioning and geometric tolerances is outstanding. I turned about 85% of the rotational components on my manual shop lathe. The 9 auxiliary tooling prints saved weeks of alignment fixtures fabrication. We clocked 16.4 kgf thrust at 123,000 RPM cleanly.
“Flawless DIN prints • Native SolidWorks feature trees”
The SolidWorks parts opened with clean parametric sketches. The German DIN manufacturing tolerances are exact and workshop-ready. Built the test bench clamp bonus drawing over the weekend, which made the static dyno testing safe and straightforward.
“Exceptional educational & practical engineering depth”
We acquired the project for our university propulsion test cell. The engineering blueprints allow students to analyze annular combustion aerodynamics, compressor diffuser geometry, and thermal clearances on a working physical micro gas turbine.
“Imported into Fusion 360 via IGES without a single defect”
I work in Autodesk Fusion 360 and the neutral IGES assembly loaded with zero geometry stitching errors. The Bill of Materials (BOM) was spot-on: ordered the 688 hybrid ceramic bearings with the exact part numbers provided. An absolute goldmine for makers.
Get the Complete Turbine Project
Lifetime access to German DIN engineering blueprints, SolidWorks 3D models, IGES files, 9 auxiliary tool drawings, and bench clamp bonus.
The Brutal Reality: Commercial Turbine vs. KeroCAD
A factory-built 18 kgf turbine (KingTech, JetCat, or Swiwin) costs as much as a used car. With KeroCAD blueprints in hand, you own the manufacturing data and save over 85%.
RC Jet Turbine Full Blueprint Package
140-180N Thrust (14-18 kgf) • 123,000 RPM • German DIN Standard
Frequently Asked Questions
Everything you need to know about DIN standards, CAD compatibility, fuels, and Gumroad delivery.
